Choosing the Perfect UHF Antenna: A Guide for Your 4WD

February 12, 2026

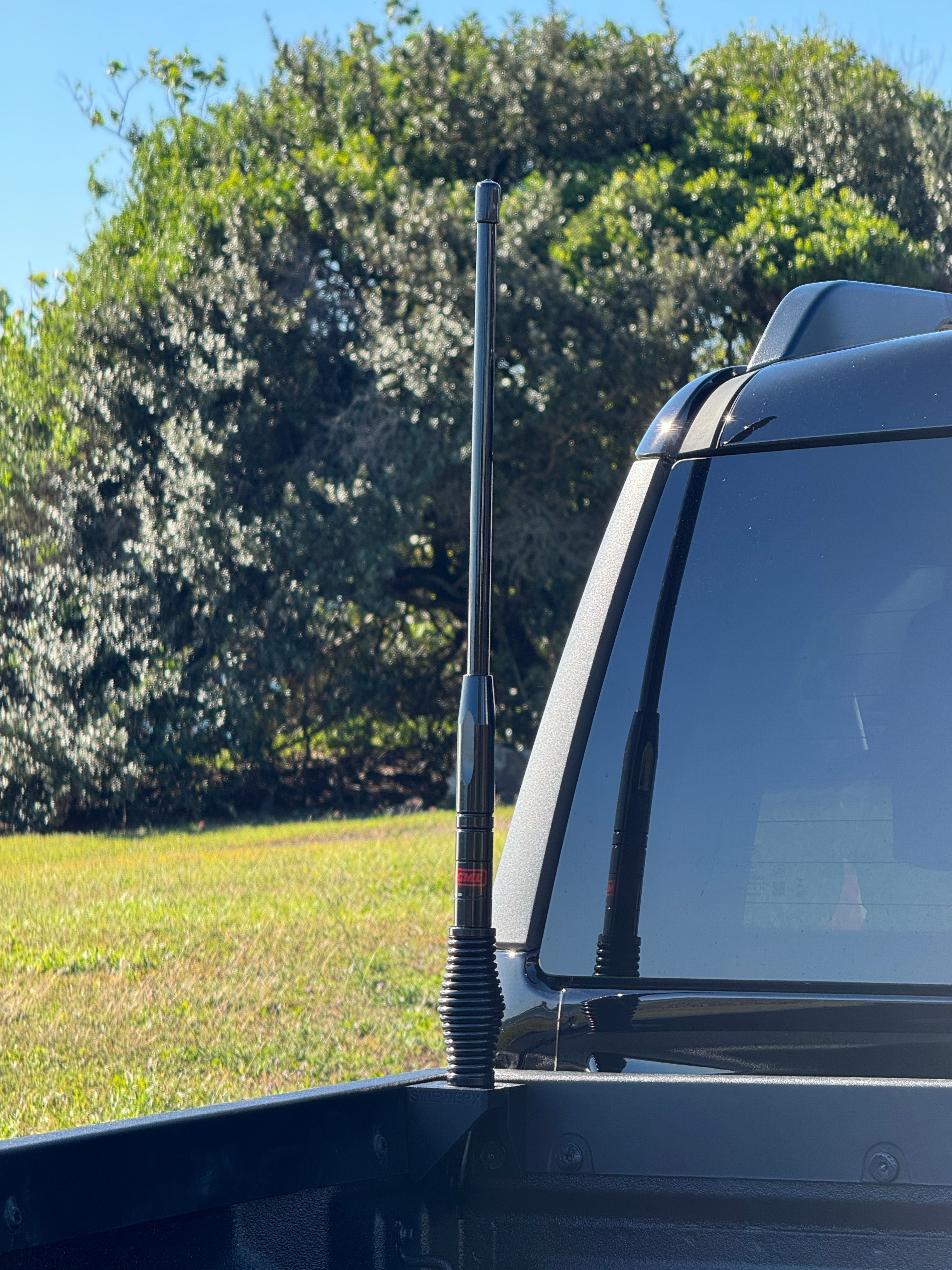

BYD Shark 6 Tub Corner UHF Antenna Bracket No Drill Mount - ASA Polymer Black

Whether you're touring the outback or hitting local tracks, your UHF radio is only as good as the antenna attached to it. But with dozens of models, different lengths, and varying "gain" ratings, how do you choose the right one?

We’ve broken down the technical specs from the industry leaders to help you cut through the noise and make the right call for your setup

1. The "Metal Bracket" Myth: Ground Dependent vs. Independent

The biggest point of confusion for most people is where the antenna can be mounted.

Ground Dependent Antennas: These require a large, flat metal surface (a "ground plane") to function. Traditionally, this meant drilling a hole in the center of your roof. If you mount one of these to a small bracket on your bullbar or guard, it simply won't perform.
Ground Independent Antennas: Most modern 4WD antennas (like the popular GME AE4700 series) are Ground Independent. This means they have the "ground" built into the base of the antenna itself.

The Sinewerx Advantage

Because Ground Independent antennas don't need to be electrically bonded to a large metal sheet, they are perfect for use with high-quality, non-metal mounts.

The Sinewerx BYD Antenna Bracket is a prime example. Some people think a bracket must be metal to provide a ground, but with a ground-independent antenna, that's simply not true. Our 3D-printed high strength ASA brackets provide a lightweight, durable, and vibration-resistant mount that won't rust or rattle, while your antenna handles the signal perfectly on its own.

2. Understanding Gain (dBi): Bigger Isn't Always Better

You’ll see antennas rated from 2.1 dBi up to 8.1 dBi. Choosing the right one depends entirely on where you drive:

Low Gain (2.1 dBi): Produces a "round" signal pattern. It doesn't reach as far on flat ground, but it’s much better at getting over hills and through tall buildings. Ideal for: High country, mountainous terrain, and city driving.
Medium Gain (6.6 dBi): The "Goldilocks" of antennas. A good all-rounder for most Australian touring.
High Gain (8.1 dBi): Produces a very "flat" and narrow signal. It sends your voice a long way, but only if the ground is flat. Ideal for: The Nullarbor, beach driving, and open plains.

Pro Tip: Look for "Interchangeable Whip" systems. You can keep a short 2.1 dBi whip for the weekends in the bush and swap to a long 6.6 dBi whip for the highway run.

3. Durability: Radome vs. Stainless Steel

If you're mounting your antenna on a bullbar or a Sinewerx mount, you need to consider vibration:

Stainless Steel Whips: Great for trucks or mirror mounts, but the high-frequency vibration of a diesel 4WD bullbar can eventually cause them to fatigue and snap.
Radome Antennas: These feature a thick fiberglass or heavy-duty plastic cover (the "Radome") that protects the internal elements. These are built for the harsh corrugations of the outback.
